Biogas digester anaerobic fermentation tank with gas holder for biogas plant to generate heat cooking fuel electircy power

FOB Reference Price:Get Latest Price
US $10,000-500,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
BETTER
Model Number:
BT-YTG
Place of Origin:
Shandong, China (Mainland)
Application:
CHP biogas plant
Calory (J):
1
Hydrogen Content (%):
2
Methane Content (%):
70
Nitrogen Content (%):
1
Sulphur Content (%):
2
Volume:
Customized
Service:
Overall biogas solution for you
Control:
Full automatic control system
Coating thickness:
0.25~0.14mm
Acid alkalinity:
Standard coating for PH 3~11
Stick force:
4050 N/cm
Service life:
25 years
Installation:
Installation Guide, easy, quick
Anti-corrosion process:
ECPC/electrophoretic-coating and power-coating
Superiority over Enameled tank:
Good impact resistance, higan toughness
SupplyAbility
SupplyAbility:
20 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden box or customized package
Port
Qingzhou
Lead Time :
about 15~40 days -according to order



Integrated reactor

Biogas digester with double membrane gas holder

for biogas plant to generate electricity



Introduction:

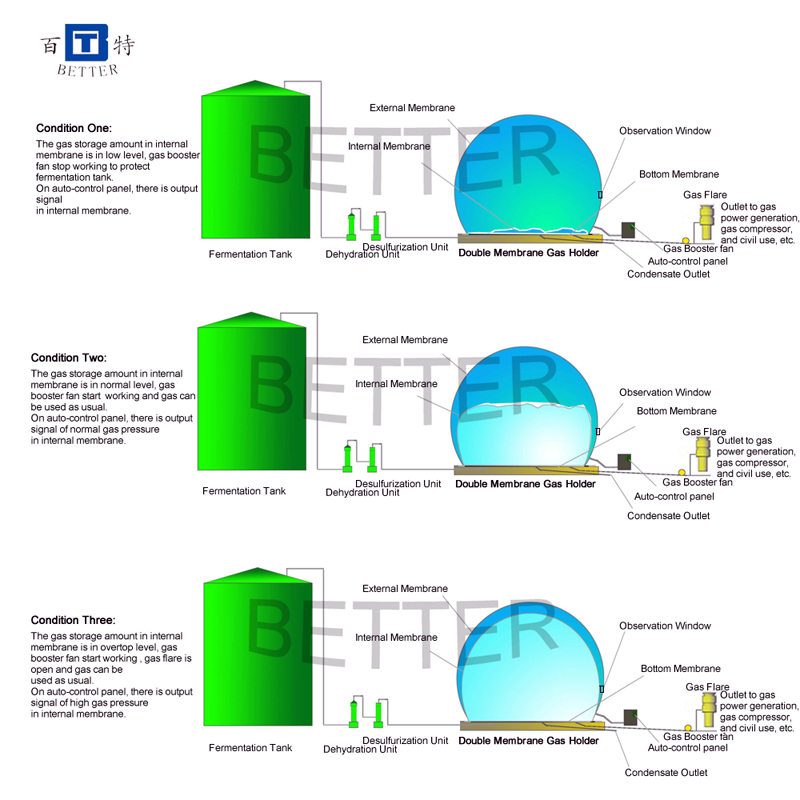

Both biogas digester (anaerobic fermentation reactor) and flexible double membraner gas holder mouted on the top of reactor tank constitute the Biogas Production and Storage integrated System.

The integrated biogas plant device is currently the mainstream mode of construction in European countries with a wealth of successful experience.  98% of the biogas projects builted in recent years are heat, electricity and fertilizer cogeneration mode, and the 80% of which adopt integrated anaerobic reactor.



Advantages of integrated reacter:

(1)  Small space required, save 30% of construction area;

(2)  Substitute for the split type gas holder, save construction cost 15%;

(3)  Short period of construction, shorten the construction period of 50%;

(4)  Run normally in winter cold area, gas holder does not freeze.



Product:



Part 1.

Biogas digester

Biogas digester is a kind of assembled tank made of special anti-corrosion processed steel, polymer composite sealing materials, self-locking bolt assembling materials. The assembled tank is used for the storage of gas/liquid/solid in sewage treatment, biogas engineering, food storage and other industries. In biogas engineering, assembled tank is an important equipment for various of organic matter fermentation.



Physical properties of digester

 Coating color

Standard color is dark green, or according to the user’s requirements

Coating thickness

0.25~0.45mm, two side coating

Acid alkalinity

Standard coating for PH value: 3~11

Special coating for PH value: 1~14

Stick force

4050 N/cm

Elastic

Same as the coated steel plate, about 500KN/mm

Hardness

6(with the Mo type hardness tester)

Service lift

30 years

Permeability

Gas/Liquid impermeable

Corrosion resistance

Excellent, suitable for wastewater, salt water, sea water, high-sulfur crude oil, salt fox, organic and inorganic compounds

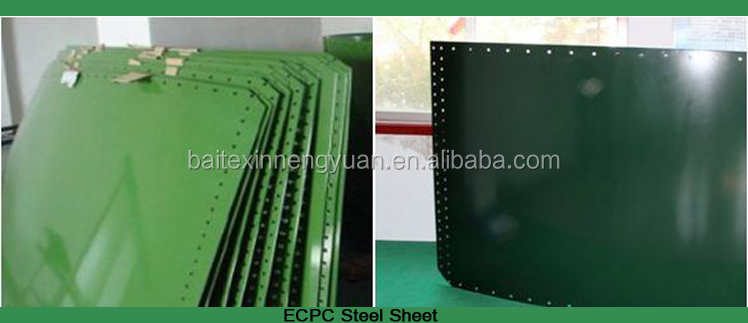

Electrophoretic-coating and power-coating double anti-corrosion insurance:





Remarks:

1. Regular dimension of the steel sheet is 1250mm*2500mm*3/4/5/6/8/10/12/14/16mm which is adjusted according the bolted tank size.

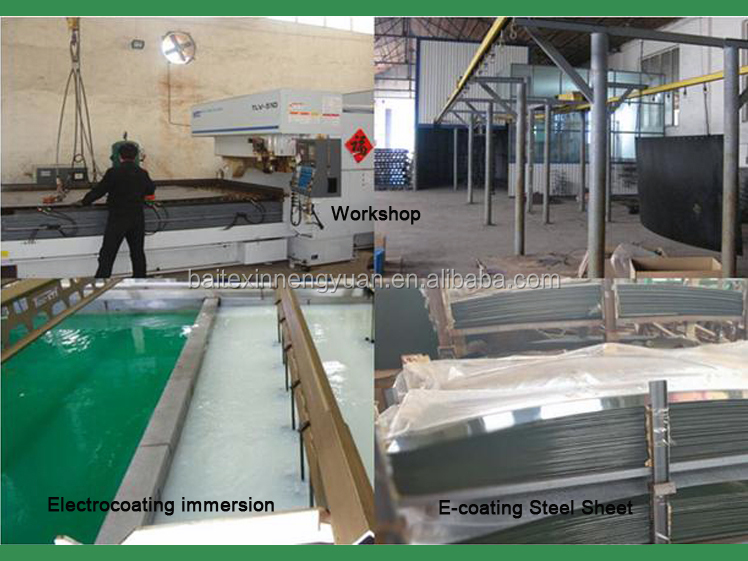

2.The antio-corrosion of the steel sheet adopts advanced ECPC(E-coating and -coating) process.

3.ECPC achieves perfect anti-corrosion level and simultaneously advoids the defect of collision effect with enamel coating which makes the delivery and installation more easier.



Part 2.

Double membrane biogas gas holder:

Double Membrane Gas Holder/Gas storage Cabinet is a durable air supported structure specifically designed for the purpose of biogas storage.



The biogas special-used membrane material is made of highly tear-resistant and anti-corrosion polyester fabrics.

 Auto control cabinet:
