Biogas digester with gas holder / Biogas production and storage system for biogas plant

FOB Reference Price:Get Latest Price
US $500-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
BETTER
Model Number:
BT-YTG
Place of Origin:
Shandong, China (Mainland)
Application:
Biogas plant
Calory (J):
1
Hydrogen Content (%):
2%
Methane Content (%):
60%
Nitrogen Content (%):
1
Sulphur Content (%):
1
Function:
Gas production and gas storage integration
Serving life:
30 years
Hardness:
6.0 Mohs
Adhesion:
3.45 N/cm
Capacity:
50-5000Cubic mete
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Main parts with steel pallet and packing sheet, matching parts with wooden box
Port
Qingdao, China
Lead Time :
15-30days according to order
Integrated reactor



Biogas digester with gas holder /

Biogas production and storage system



Introduction:

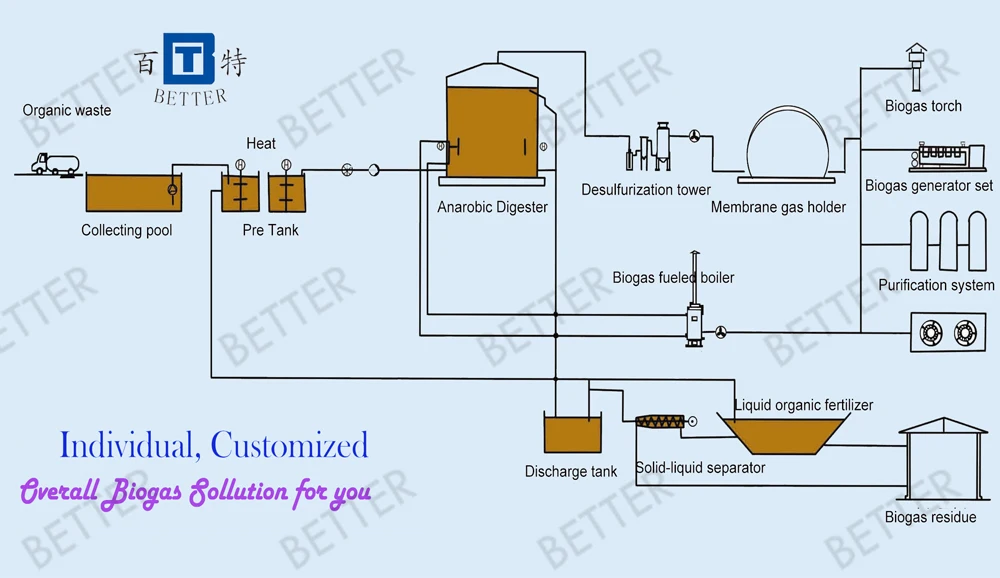

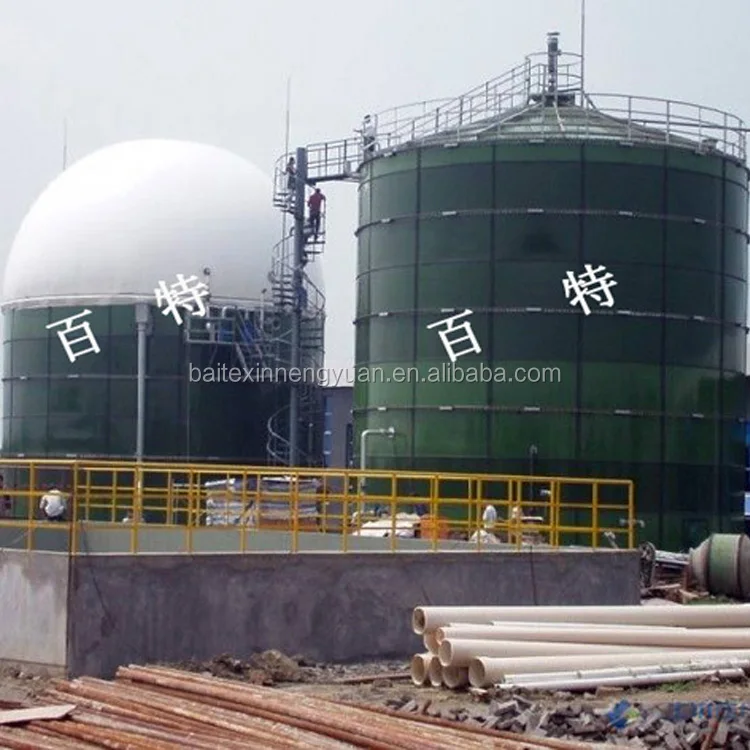

Both anaerobic reactor and flexible double membraner gas holder on the top of the reactor constitute the Gas Production and Gas Storage integrated System. The integrated biogas device is currently the mainstream mode of construction in European countries with a wealth of successful experience.  98% of the biogas projects builted in recent years are heat, electricity and fertilizer cogeneration mode, and the 80% of which adopt integrated anaerobic reactor.



Advantages of integrated reacter:

(1)  Small space required, save 30% of construction area;

(2)  Substitute for the split type gas holder, save construction cost 15%;

(3)  Short period of construction, shorten the construction period of 50%;

(4)  Run normally in winter cold area, gas holder does not freeze.






Part 1.

Anaerobic reactor:

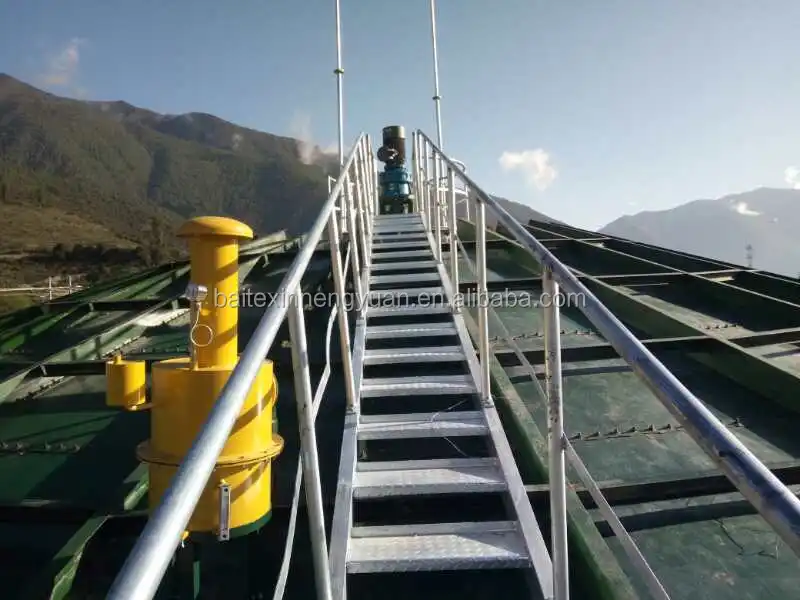

Biogas anaerobic reactor is a kind of bolted tank made of special anti-corrosion processed steel (EPEC anti-corrosion), polymer composite sealing materials, self-locking bolt assembling materials.



The assembled tank is widely used for the storage of gas/liquid/solid in sewage treatment, biogas engineering, food storage and other industries. In biogas engineering, assembled tank is an important equipment for various of organic matter fermentation.






Specifications of biogas digester/EPEC bolted tank

 Coating color

Standard color is dark green, or according to the user’s requirements

Coating thickness

0.25~0.45mm, two side coating

Acid alkalinity

Standard coating for PH value: 3~11

Special coating for PH value: 1~14

Stick force

4050 N/cm

Elastic

Same as the coated steel plate, about 500KN/mm

Hardness

6(with the Mo type hardness tester)

Service lift

30 years

Permeability

Gas/Liquid impermeable

Corrosion resistance

Excellent, suitable for wastewater, salt water, sea water, high-sulfur crude oil, salt fox, organic and inorganic compounds



Part 2.

Double membrane biogas holder:

Double Membrane Gas Holder/Gas storage Cabinet is a durable air supported structure specifically designed for the purpose of biogas storage. The biogas special-used membrane material is made of highly tear-resistant and anti-corrosion polyester fabrics.

Double membrane gas holder can be used as an independent gas storage structure, or be installed as part of the anaerobic digestion system.
