Biogas plant Anaerobic fermentation tank biogas digester with double membrane gas holder gas storage bag

FOB Reference Price:Get Latest Price
$100,000.00 - $1,000,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Brand Name:
Model Number:
Place of Origin:
Shandong, China (Mainland)
biogas plant
Calory (J):
Hydrogen Content (%):
Methane Content (%):
Nitrogen Content (%):
Sulphur Content (%):
Overall biogas solution for you
Full automatic control system
Coating thickness:
Acid alkalinity:
Standard coating for PH 3~11
Stick force:
4050 N/cm
Service life:
30 years
Installation Guide, easy, quick
Anti-corrosion process:
ECPC/electrophoretic-coating and power-coating
Superiority over Enameled tank:
Good impact resistance, high toughness
Supply Ability
Supply Ability:
20 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden box or customized package
Lead Time :
about 15 days -according to order

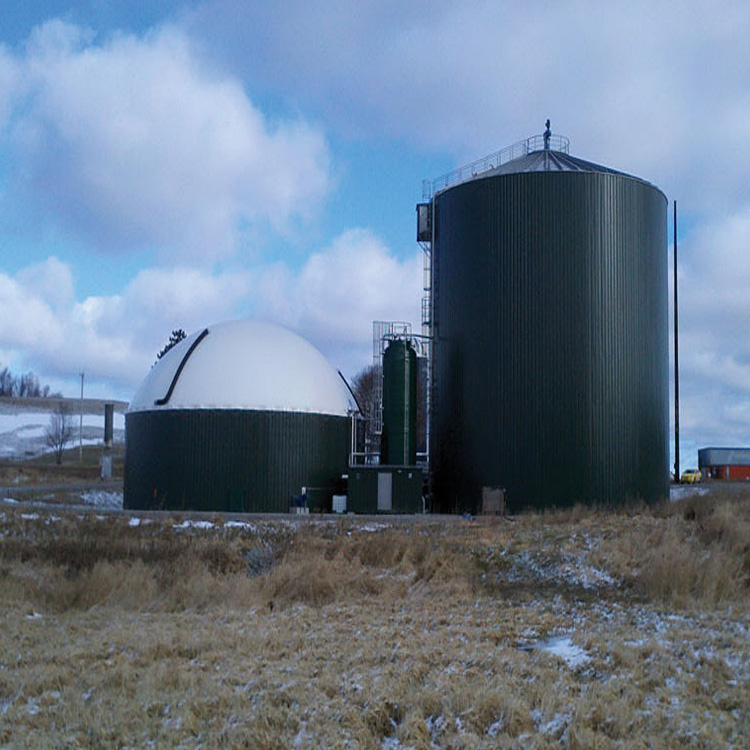

Integrated reactor

Biogas anaerobic digester with membrane gas holder/

Gas production and gas storage integrated reactor



Both biogas digester and flexible double membraner gas holder on the top of the reactor constitute the Gas Production and Gas Storage integrated System. The integrated biogas device is currently the mainstream mode of construction in European countries with a wealth of successful experience.  98% of the biogas projects builted in recent years are heat, electricity and fertilizer cogeneration mode, and the 80% of which adopt integrated anaerobic reactor.



Part 1.

Biogas digester

Biogas digester is a kind of assembled tank made of special anti-corrosion processed steel, polymer composite sealing materials, self-locking bolt assembling materials. The assembled tank is used for the storage of gas/liquid/solid in sewage treatment, biogas engineering, food storage and other industries. In biogas engineering, assembled tank is an important equipment for various of organic matter fermentation.

Physical properties of biogas digester

 Coating color

Standard color is dark green, or according to the user’s requirements

Coating thickness

0.25~0.45mm, two side coating

Acid alkalinity

Standard coating for PH value: 3~11

Special coating for PH value: 1~14

Stick force

4050 N/cm


Same as the coated steel plate, about 500KN/mm


6(with the Mo type hardness tester)

Service lift

30 years


Gas/Liquid impermeable

Corrosion resistance

Excellent, suitable for wastewater, salt water, sea water, high-sulfur crude oil, salt fox, organic and inorganic compounds

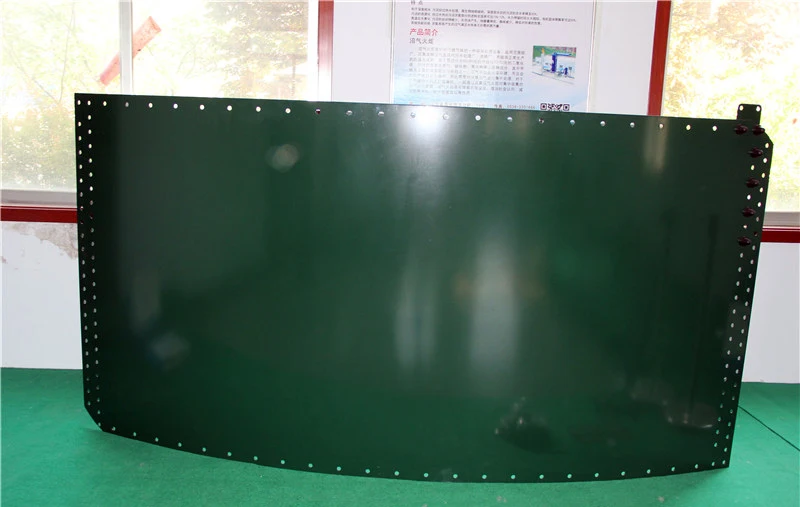

E-coating and P-coating processed steel sheet


Part 2.

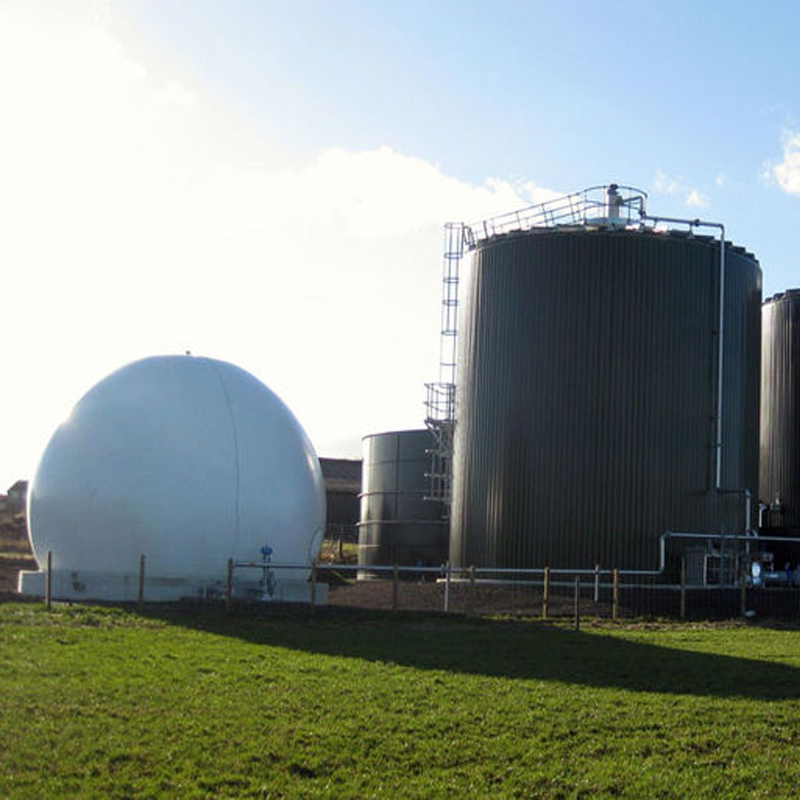

Double membrane biogas holder:

Double Membrane Gas Holder/Gas storage Cabinet is a durable air supported structure specifically designed for the purpose of biogas storage. The biogas special-used membrane material is made of highly tear-resistant and anti-corrosion polyester fabrics.

Double membrane gas holder can be used as an independent gas storage structure, or be installed as part of the anaerobic digestion system.


Membrane material:



Advantages of integrated reacter:

(1)  Small space required, save 30% of construction area;

(2)  Substitute for the split type gas holder, save construction cost 15%;

(3)  Short period of construction, shorten the construction period of 50%;

(4)  Run normally in winter cold area, gas holder does not freeze.
