Biogas Slurry dewatering machine Solid liquid separator

FOB Reference Price:Get Latest Price
US $500-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Farm Equipment
Use:
Agriculture/Biogas/Wastewater treatment
Certification:
CE ISO
Place of Origin:
Shandong, China (Mainland)
Brand Name:
BETTER
Model Number:
LX200/280/300
Condition:
New
After-sales Service Provided:
No overseas service provided
Voltage:
380V/50HZ Three phase
Color:
Blue/yellow/green, customized
Function:
Dewater for sludge
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wood box
Port
Qingdao Port
Lead Time :
7-15 days after payment

Description of biogas solid liquid separator:



Main functions:

1. Small, low rotate speed, simple operation, convenient installation and maintenance.

2. Low cost, high efficiency, fast investment return, no need to add any flocculating agent.

3. Separate the original livestock manure to liquid and solid organic fertilizer.

4. Compact structure, stainless` steel, corrosion resisting.



Brief Description:

The development of modern livestock farming, the rise of intensification and factory farming industry has enriched people's material needs. However, it also brought the flooding of livestock sewage which caused the water, air and environment pollution. This machine is used to reduce the water content of animal dung, acid-sludge, biogas slurry, medicine dregs, kitchen rubbish, and many other dregs.

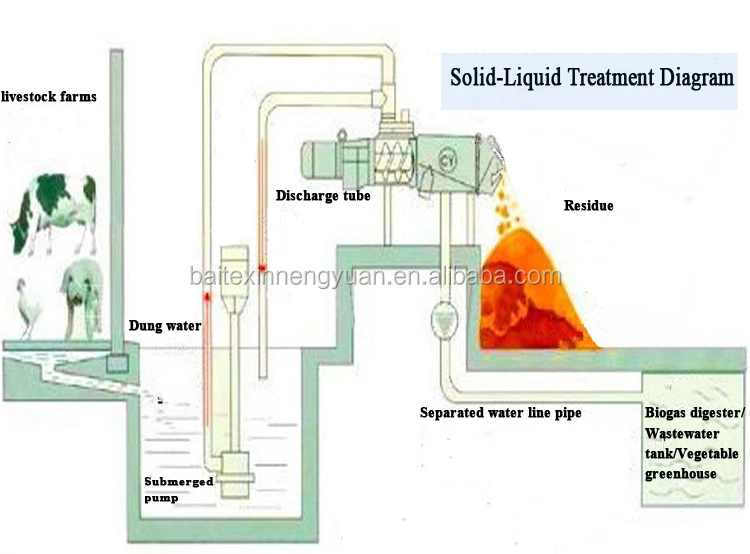

Working principle:

Sludge pump in the manure pits upgrade the original fecal residue to solid-liquid separator, the extrusion screw which is installed in the mesh will push the original fecal residue to move forward by 47 rev/min speed.

Dry product will come out from discharge outlet by pressing of cylinder. The liquid which is filtered through the sieve mesh will flow into the conditioning tanks.



Product specification

Model

Power(main engine+submerged pump)(kw)

Diameter of filter screen

(mm)

Diameter of submerged pump inlet(mm)

Diameter of discharge pipe(mm)

Sewage outlet pipe diameter

(mm)

Power source

Dimention

(L*W*H)

(mm)

Weight

LX200

4+3

220

76

76

108

380

2000*700*1500

550

LX280

5.5+3

280

76

76

108

380

2300*800*1500

680

LX300

7.5+3

300

76

76

108

380

2300*800*1500

680

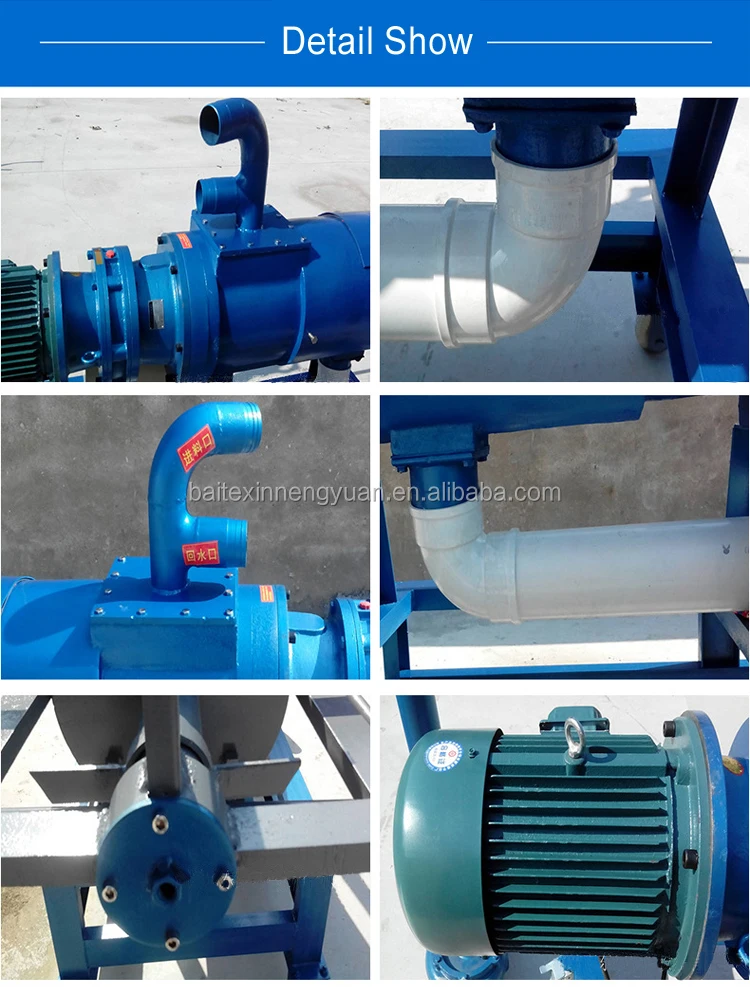

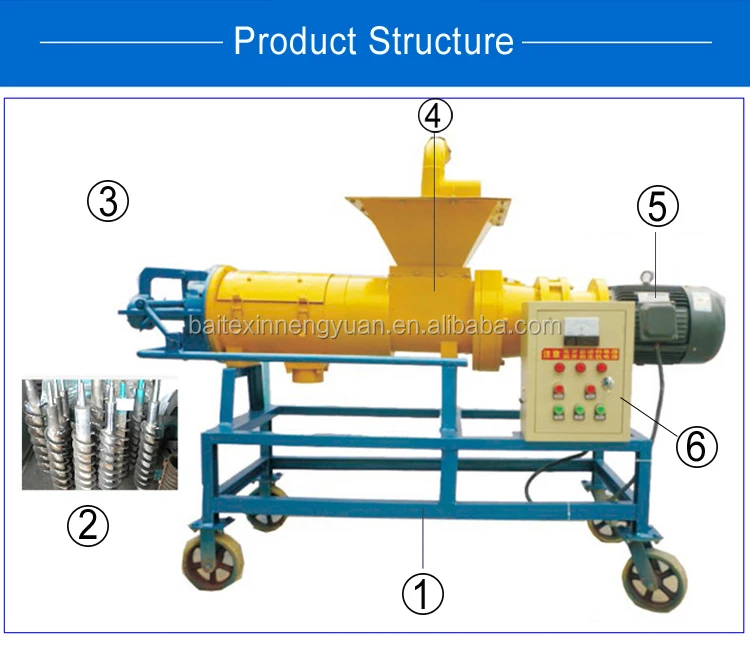

Main parts

Qulity

1. Frame

Made of channel steel and angel steel

2. Helical blade and Main shaft

Made of premium grade 304 stainless steel

3. Filter screen

Made of premium grade 304 stainless steel.

(Clearance include0 0.25MM, 0.5MM, 0.75MM, 1.0MM according to feed material)

4. Main engine box

Cast iron

5. Motor

(main engine/submerged pump)

4KW

6. Electrical cabinet

general power switch, main engine contactor, main engine contactor, main engine relay, water pump relay
