Biogas Scrubber for Vapour & H2S remove / High efficiency Dehydration & Desulfurization Tower for biogas purification

FOB Reference Price:Get Latest Price
US $100-1,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
BETTER
Model Number:
BTQS BTTL
Place of Origin:
Shandong, China (Mainland)
Application:
Biogas purification
Calory (J):
22000
Hydrogen Content (%):
1
Methane Content (%):
60
Nitrogen Content (%):
5
Sulphur Content (%):
3
Function:
Biogas pretreatment for H2S remove
Desulfurizer:
Fe2O3
Fe2O3 change:
more than 10000 hours
Installation:
Easy to install by customer
Type:
one or two desulfurization tower
Capacity:
Customized
Color:
Customized
Compostion:
Water seal, dehydration tower, desulfurization tower
SupplyAbility
SupplyAbility:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Tower body packed with felted fabrics, other accessores in wooden box
Port
Qingdao, China
Lead Time :
5-10days



Biogas Scrubber for Vapour & H2S remove /

High efficiency Biogas Dehydration & Desulfurization Tower



Biogas pretreatment .jpg





Technological process:



Raw Biogas



 Dehydration & Desulfurization



Flame arresting and gas boosting



 CHP - Heat and Power Cogeneration





Biogas pretreatment biogas scrubber




1. Gas-liquid separator/ Water vapour scrubber/ Biogas dryer



Introduction:

In the raw biogas produced in the process of anaerobic fermentation, there is massive water vapour mixed. Due to temperature/pressure change and dew point depression during pipe transportation, water vapour is condensed into water which caused two-phase flow in delivery system. System resistance increases and the pipeline is even declined to be blocked off. The function of gas liquid  separator is to filter moisture/water vapour by the method of cold separation, thus eliminating the hidden danger during the biogas transmission.





Principle:



Our company own designed high-efficiency gas-water separator is based on the principle of cold separation method and in addition developed a unique packing system through which the gas and liquid two-phase disperse into many tiny bubbles, droplets or liquid film. This increases the contact area of gas/liquid and higher removal efficiency of gas dehydaration.



In addition, we've also designed cyclone style gas-liquid separator for your choice.

Pls contact us for more information.

biogas scrubber



Advantages:



a)     Moisture removal rate: more than 98%.

b)     The filler has good chemical stability free from gas or liquid corrosion and also has a certain flame arrest effect.

c)     Suitable designed void content can reduce gas resistance;

d)     Good mechanical strength.





2. Biogas desulfurization tower/ H2S Scrubber

Introduction:

H2S is a toxic and corrosive gas and its concentration in raw biogas may vary based on the feedstock. H2S in biogas has to be reduced to harmless level to protect the downstream processes and equipments as well as toxicity to human health.



Our dry desulfurization equipment can used in the purification system of biogas, farm, starch, papermaking, sewage treatment, alcohol, chemical fiber, pharmacy, fertilizer, coking, landfill, coal gas, natural gas, ceramics, food, maize further processing, citric acid, and other industries.

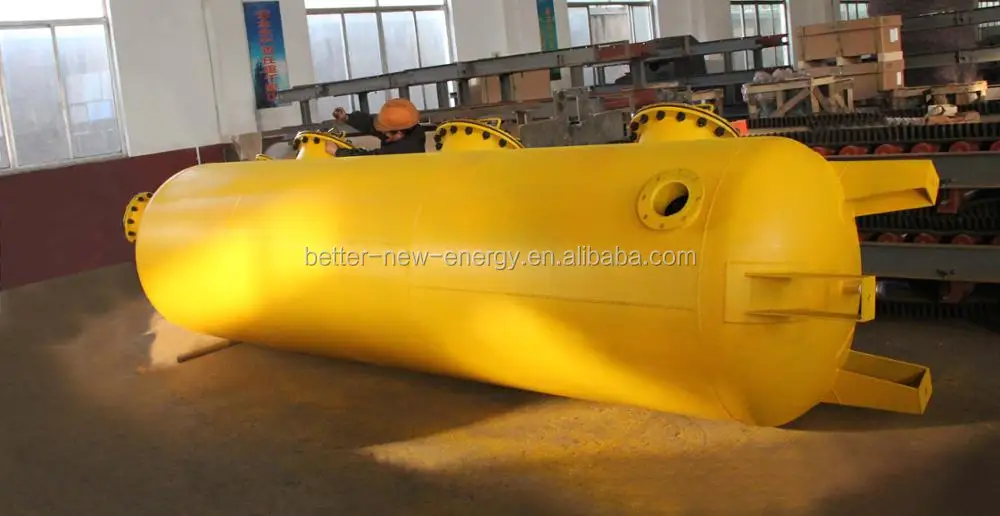

biogas scrubber H2S filter desulfurization





Desulfurizer:



The desulfurization tower makes use of high effective desulfurizer to remove H2S. Biogas is led through a media composed of woodchips and iron oxide or hydroxide. H2S is removed as iron oxides react with sulfides (H2S) to produce iron sulfide. Bed can be regenerated several times before requiring replacement.

Anticorrosion treatment:



The inner surface of desulfurization tower uses advanced anti-rust technology making the combination of epoxy resin anticorrosive coating and tank body more strengthen, which prolongs the lifetime of equipment. The H2S content in the device outlet is low to less than 200mg/Nm3 up to emission standard.



Performance and Characteristics:



1.    Simple structure, convenient for operation;

2.    No need of staff on duty, refueling at fixed period, one for use one for standby.

3.    Compared with wet method, need refueling at fixed period

4.    High precision of desulfurization.
